Valves and solenoid valves
replacement time approx. 5 week(s)

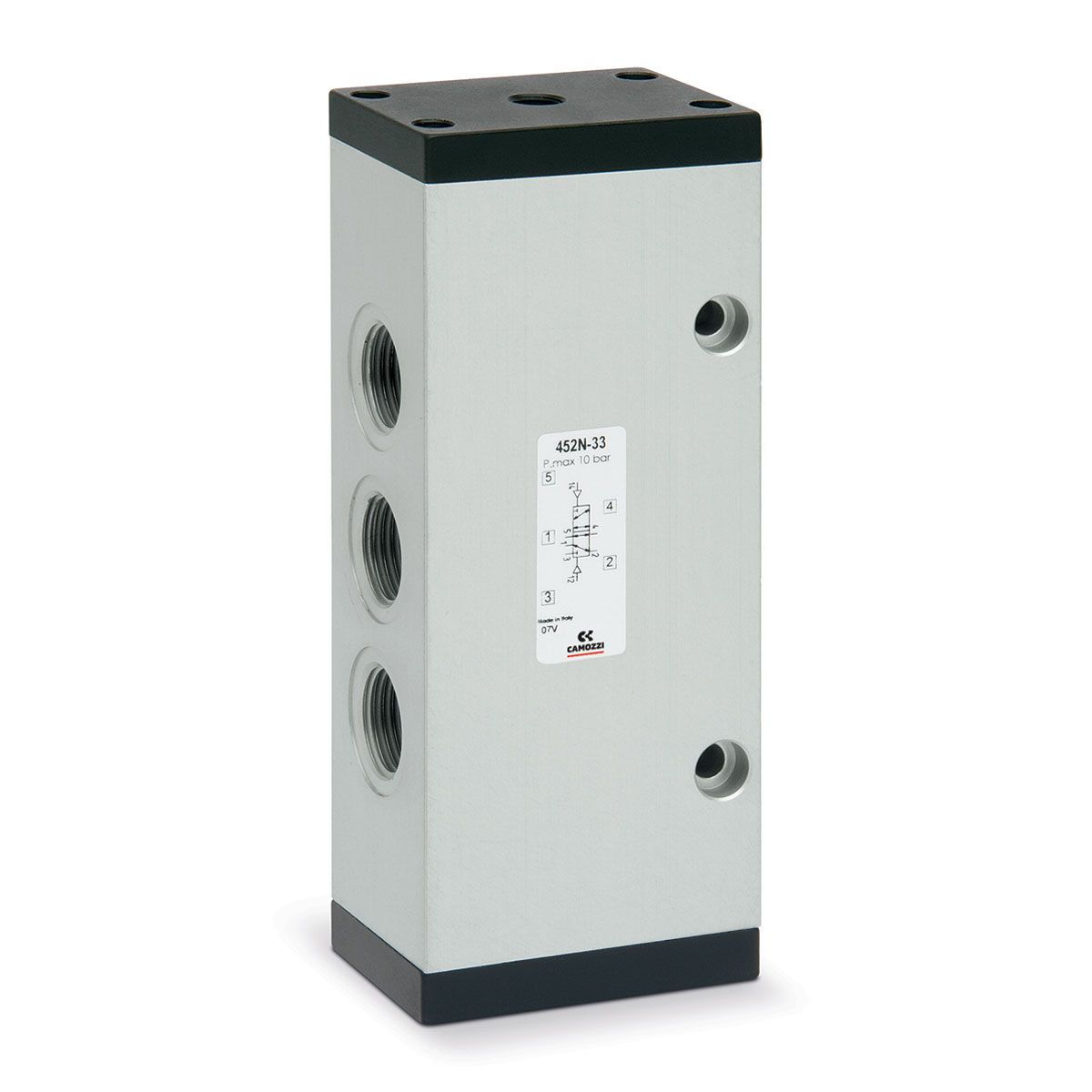

Item no:452N-33
Description of the
5/2-way valve, G1/2 port, bistable - Mod. 452N-33, Commercial code: 452N-33, Standard and certifications: CE, Standard and certifications: +60, Min operating temperature [°C]: 0, Max IP protection w/ connector: N.a., Type of pneumatic connection: Gas threading, Pneumatic connection: G1/2, Max input pressure [bar]: 10, Oxygen service: No, Media: Air, Body material: Aluminium, Seal material: NBR, Kv value [m³/h]: -, Type of electrical connection: - Absent, Manual override: - Absent, Series: 4, Orifice [mm]: - Absent, Standard: - Absent, Flow rate (Qn) [l/min ANR]: 4000, Valve function: 5/2, Actuation type: Pneumatically operated, Voltage: - Absent
