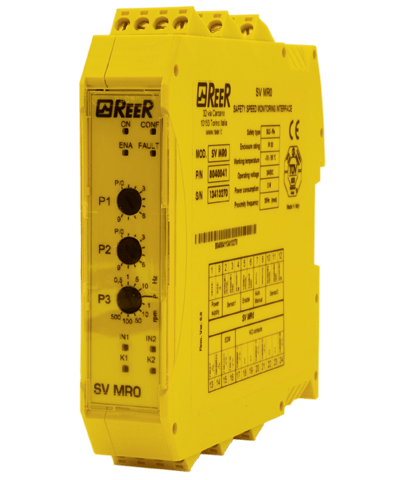

SV MR0
Prices are only visible to registered customers. Please sign in or request a login.
replacement time approx. 2 week(s)
Item no:REER-1100078
Description of the
Safety Interface for Speed Monitoring. For 2 Proximity Switches. Trips Above Threshold. Screw Terminal Blocks Safety speed monitoring interface for overspeed and Zero speed control Safety level up to PL e - SIL 3 - Selectable manual or Automatic restart - EDM feedback input for external contactors monitoring - Enable inputs used, for instance, when monitoring the same axis, in different working phases, with more modules configured with different thresholds - Faults are signalled by LED “Fault” and a PNP system status output. PNP status output indicating overspeed or underspeed thresholds crossing - 2 inputs for PNP proximities switches - 3 front panel selectors allow configuration of the speed threshold
Specifications
- Product
- Safety Controllers & Interfaces
- Connections
- Removable terminal blocks, contact screws
- Safety Level
- PL e
- Safety Relay Outputs
- 2 NO (6A at 250 VAC)
- Safety Level (SIL / PL)
- SIL 3 - SILCL 3 - PL e - Cat. 4
