Item no:REER-1100047

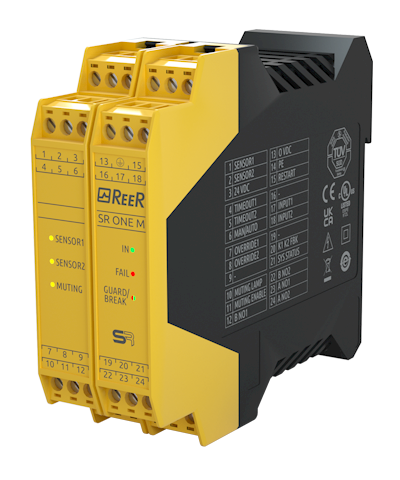

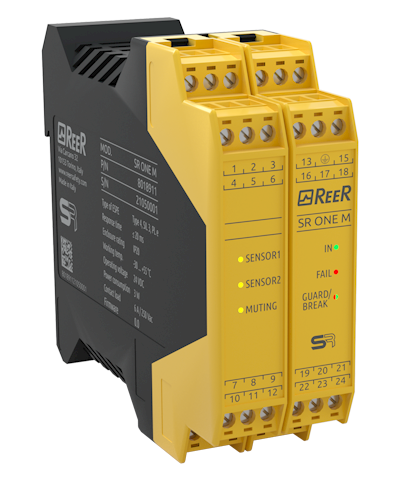

SR ONE M
Prices are only visible to registered customers. Please sign in or request a login.
replacement time approx. 2 week(s)
Item no:REER-1330904
Description of the
Safety Interface for Safety Light Curtains. with Integrated Muting Function. Screw Terminal Blocks Safety Interface module for OSSD output devices. Safety light curtains: EOS4 A, EOS2 A, Admiral AD, Admiral AX BK, Vision V Safety switches: Magnus RFID Safety laser scanner: UAM - 2 inputs for Muting sensors - Guided contact safety relays - Start/Restart interlock - EDM Feedback input for extra external contactors monitoring - Muting Time-out selectable - Integrated Override with 2 operating modes selectable - Muting Enable input. Whit clamp terminal blocks
Specifications
- Product
- Safety Controllers & Interfaces
- Response Time (ms)
- ≤ 20
- Connections
- Removable terminal blocks, contact screws
- Safety Level
- Type 4 - PL e
- Safety Relay Outputs
- 2 NO (6A at 250 VAC)
- Safety Level (SIL / PL)
- Type 4 - SILCL 3 - PL e - Cat. 4
