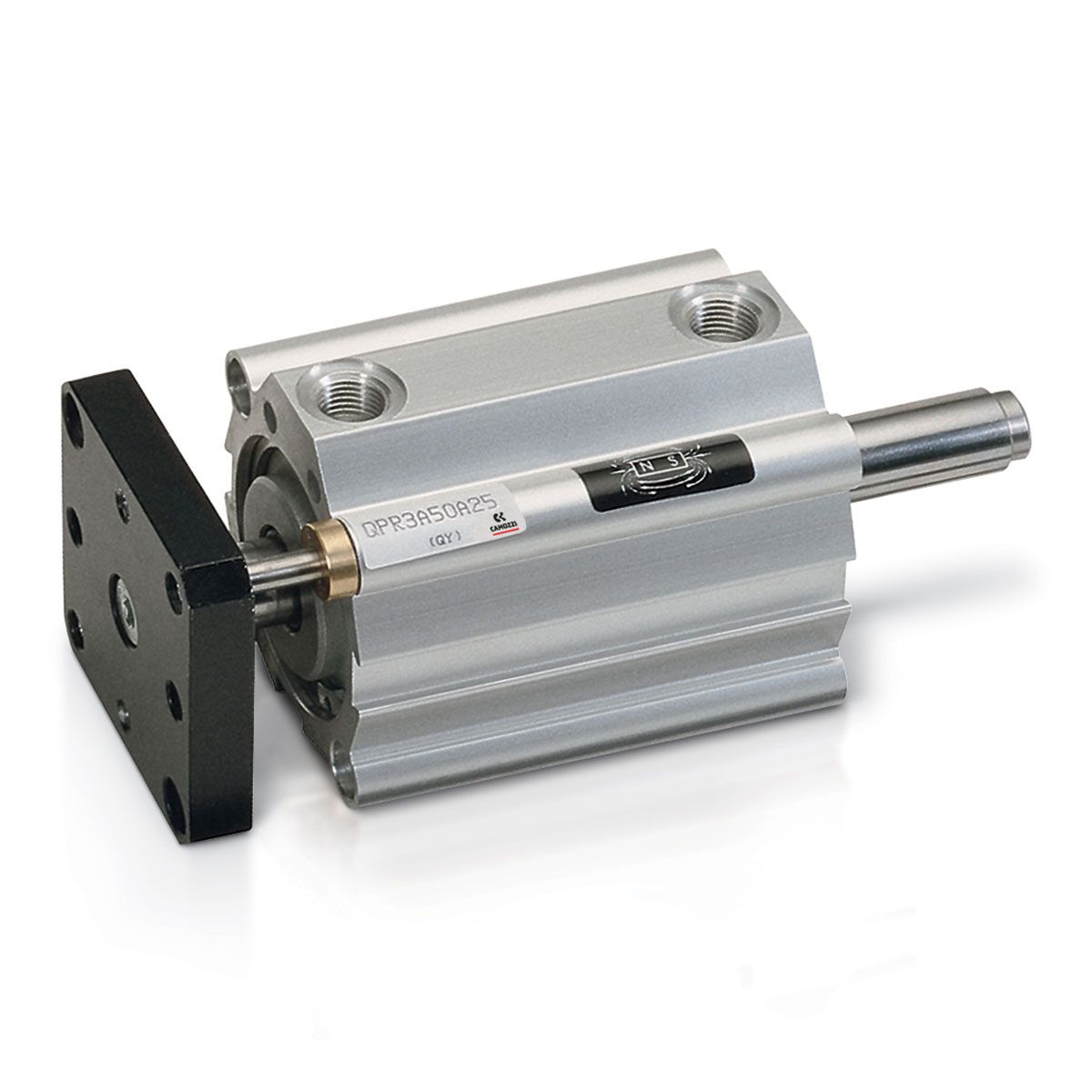

Short-stroke cylinders
replacement time approx. 5 week(s)
Item no:QPR3A025A080
Description of the
Short-stroke cylinder - through-rod, Commercial code: QPR3A025A080, Standard and certifications: RoHS, Standard and certifications: Magnetic switch, Dimensional standards: Undefined, Connection type: Metric, Min operating pressure [bar]: 1, Actuation type: Double acting, Series: QP, Piston diameter / size [mm]: 25, Stroke [mm]: 80, Type: Guided, Cushioning type: Mechanical, Type of rod end: Non rotating flange, Max operating temperature [°C]: +80, Min operating temperature [°C]: -20 (with dry air) / 0
