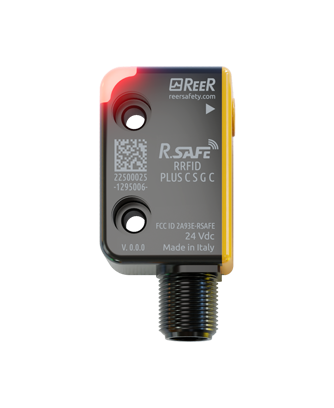

RRFID PLUS S S T C

Description of the

Plus Version. Active Sensor. Teach-In coding. Manual/Automatic restart. Serial status output. M12 Connector Teach-In Coding: the actuator is programmed via teach-in and permanently assigned to the sensor during set-up (the process can be repeated if necessary)

Specifications

Product

Safety Devices

Response Time (ms)

55

Safety Output Type

2 OSSD (300 mA at 24 VDC) with short-circuit, overload protection

Safety Level

PL e

Test Outputs

1

Safety Inputs

2 Digital inputs

Connector

M12 8-pin Plug

Safety Level (SIL / PL)

SIL 3 - SILCL 3 - PL e - Cat. 4

Number of Safety Outputs

2 pairs OSSD (300 mA)

Gewicht pro pc

0.400 kg

Zolltarifnummer

9032.8900

Ursprungsland

ITA

Accessories



CF8P3

Item no:REER-1295103





CF8P5

Item no:REER-1295104





CF8P10

Item no:REER-1295105





CFM 8P 3

Item no:REER-1295100
