MT 2B TRX V

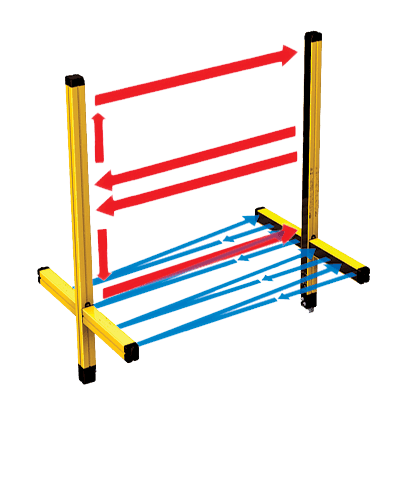

Access Control Safety Light Curtain with Integrated Muting Function. Automatic/Manual Restart and EDM. T-Logic (Entry-Exit). Transceiver (TRX). For Applications with High Speed Conveyors Safety Light Curtain: Type 4, SIL 3, SILCL 3, PL e, Cat. 4 Cross Section: 50 x 60 mm Hardware configuration: no programming necessary, easy to install and replace Configuration through main connector Built-in Muting sensors with 2 crossed beams: pre-wired, pre-aligned, adjustable in height and angle Two-way access control system with entry-exit T-Muting logic Muting sensors with longer arms optimised for high-speed conveyors M12 connectors for external Muting sensors, with operating logic with 2 or 4 sensors Unshielded cables up to 100 m can be used to connect the Safety Light Curtain What's in the Box: Active TX/RX Element, Passive Retro-Reflector Element and Standard Fastening Brackets
