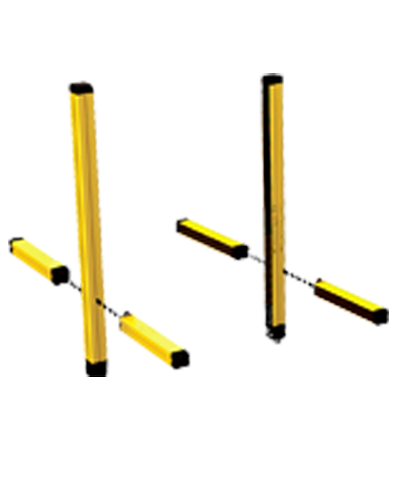

MM 4B TRX

Prices are only visible to registered customers. Please sign in or request a login.
Not available
Item no:REER-1360692

Description of the

Access Control Safety Light Curtain with Integrated Muting Function. Automatic/Manual Restart and EDM. Modular Safety Light Curtain: Type 4, SIL 3, SILCL 3, PL e, Cat. 4 Cross Section: 50 x 60 mm Hardware configuration: no programming necessary, easy to install and replace

Specifications

Product
Safety Light Curtains
Response Time (ms)
10
Max. Range (m)
6
Resolution (mm)
Multi-Strahl
Number of Beams
4
Monitoring Height (mm)
910
Characteristic output of muting sensors2
PNP 100mA at 24 VDC, dark-on
Muting Sensors
With relay or PNP DARK-ON output
Safety Output Type
2 fail-safe PNP (500 mA at 24 VDC) with short-circuit, overload, reverse polarity protection
Total Height (mm)
1176
Connections
5-pin M12 Connector
Safety Level
Type 4 - PL e
Scanning
Access control
Operating Range (m)
Up to 6 (when equipped with SL TRX and ST TRX)
Safety Level (SIL / PL)
Type 4 - SIL 3 - SILCL 3 - PL e - Cat. 4
Operating System
TRX (Transceiver)
Number of Safety Outputs
2 fail-safe PNP (500 mA at 24 VDC)
Gewicht pro pc
8.160 kg
Zolltarifnummer
8536.5019
Ursprungsland
ITA
