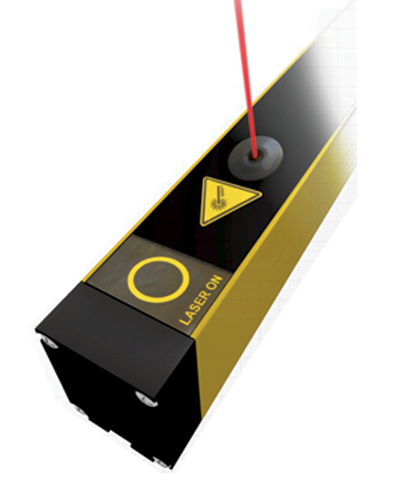

J 3B LRH M12 ILP

Prices are only visible to registered customers. Please sign in or request a login.

Not available

Item no:REER-1360647

questions about the product

Description of the

Access Control Safety Light Curtain with Automatic/Manual Restart and EDM. M12 connector. Extended Long Range. With Integrated Laser Pointer Safety Light Curtain: Type 4, SIL 3, SILCL 3, PL e, Cat. 4 Cross Section: 50 x 60 mm Hardware configuration: no programming necessary, easy to install and replace Connections and configuration through main connector Unshielded cables up to 100 m can be used to connect the Safety Light Curtain What's in the Box: Emitter, Receiver and Standard Fastening Brackets

Specifications

Product: Safety Light Curtains
Response Time (ms): 7
Max. Range (m): 80
Resolution (mm): Multi-Strahl
Number of Beams: 3
Monitoring Height (mm): 810
Safety Output Type: 2 fail-safe PNP (500 mA at 24 VDC) with short-circuit, overload, reverse polarity protection
Total Height (mm): 1036
Connections: 5-pin M12 Connector (Transmitter), 8-pin M12 Connector (Receiver)
Safety Level: Type 4 - PL e
Scanning: Access control
Operating Range (m): Selectable: 18 ... 40 m – low range / 25 ... 80 m – high range
Safety Level (SIL / PL): Type 4 - SIL 3 - SILCL 3 - PL e - Cat. 4
Operating System: Transmitter / Receiver
Number of Safety Outputs: 2 fail-safe PNP (500 mA at 24 VDC)
