Elastomer coupling RINGFEDER
Prices are only visible to registered customers. Please sign in or request a login.
replacement time approx. 4 week(s)
Item no:GWE 5102-07
Description of the

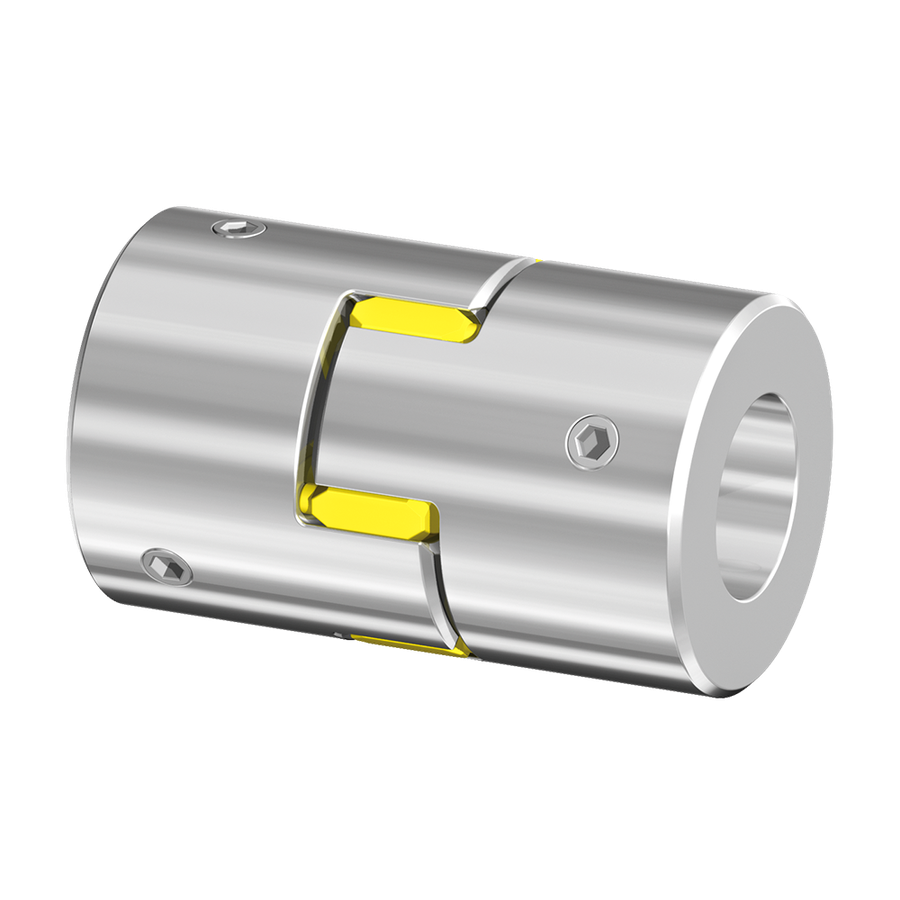

Elastomer couplingg RINGFEDER Type GWE 5102, Size 07 Elastomer insert 92 Sh A (yellow)

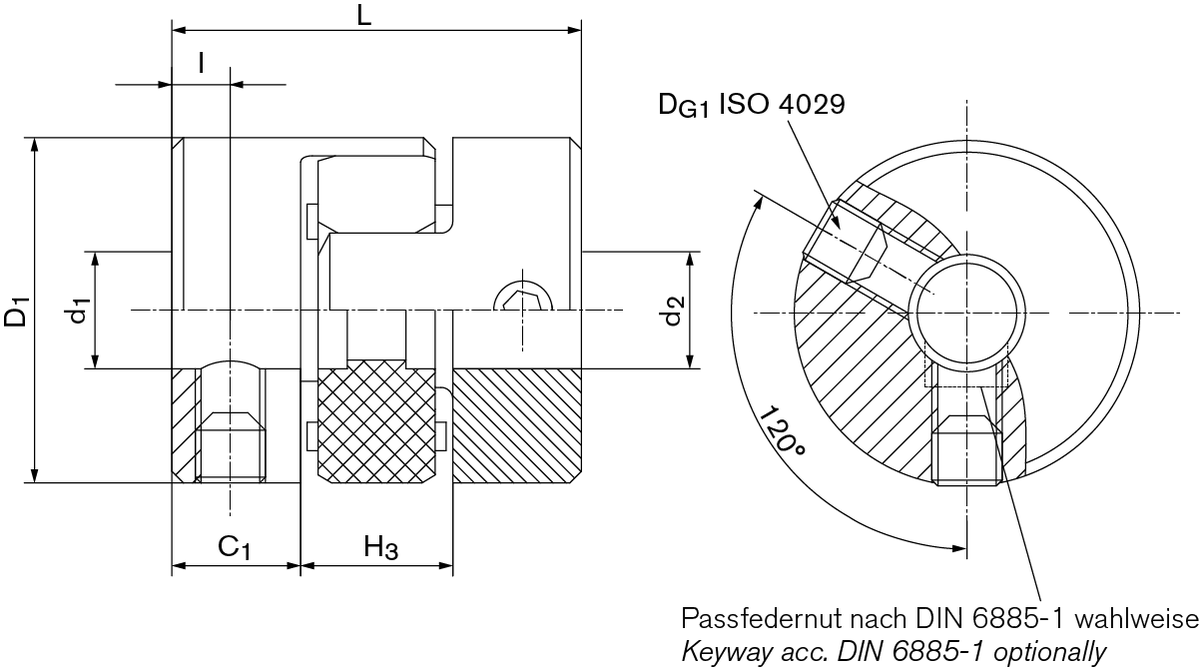

Specifications
- Number of screws
- 1
- Tightening torque
- 1.3
- C1
- 7
- D1
- 14
- d1 max.
- 8
- d1 max. with keyway
- 8
- d1 max. with keyway
- 8
- d1 min.
- 3
- d1 min. mit Passdernut
- 6
- d1 min. with keyway
- 6
- d2 max.
- 8
- d2 max. mit Passdernut
- 8
- d2 max. with keyway
- 8
- d2 min.
- 3
- d2 min. mit Passdernut
- 6
- d2 min. with keyway
- 6
- DG1
- 3
- Torque
- 1.2
- Size
- 7
- H3
- 8
- Inner diameter of elastomer insert
- 0
- L
- 22
- Material
- Aluminium
- Max. speed
- 34000
- Product
- Elastomer coupling
- Number of teeth of elastomer insert
- 4
- Elastomer insert hardness
- 92 SH A
